Caméra
Capteur d'image : 1/4" Progressive scan CMOS sensor
Résolution : 1.3 Megapixel (1280 x 1024)
Optique : F: 1.8, f: 4.2 mm
Angle de vision : Diagonal 58°, Horizontal 46°, Vertical 35°
Zoom numérique : 10x Digital
Illumination min : 0.5 Lux
VIDEO/IMAGE
Compression Vidéo : Motion JPEG
MPEG-4 Part 2 (ISO/IEC 14496-2) Simple Profile
H.264 Baseline Profile
Résolutions : Max. 15 fps at 1280x1024 (SXGA), 1280x720 (HD 720)
Max. 30 fps at 640x480 (VGA), 320x240 (QVGA)
Streaming vidéo : Simultaneous Motion JPEG, MPEG-4, H.264 and 3GPP (4 streaming)
Controllable Frame rate and bandwidth
Support Unicast and Multicast
Support 3GPP/ISMA RTSP (Real Time Streaming Protocol)
Paramètres Image : Rotation: Mirror, Flip, Mirror Flip
Configurable brightness, contrast, saturation
Overlay capabilities: time, date, text and privacy image
AUDIO
Communication audio : 2-Way full duplex
Entrée audio : Built-in microphone
Sortie audio :Audio line output connector for external speaker
Compression audio : G.711 μ law, a law, and AMR
Alarme et Alerte
Avancé : Built-in audio & motion detection, schedule, network link down
Seuil de déclenchement d'évenement : E-mail, FTP, network storage
Méthode de notification : Pre- and Post-alarm buffer
Built-in Samba/NFS Client for NAS
Réseau
Standards et Protocoles : Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,
DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP,
3GPP/ISMA RTSP
Sécurité : Multiple password-protected user levels
HTTPS encryption
IP filter
INTERFACES
Interface réseau : RJ-45 for Ethernet 10/100 Base-T
Connecteur d'alimentation : DC power jack
Sortie audio :  3.5 mm jack for line out
Bouton : Reset push button
Surveillance
Utilisateurs : 10 simultaneous unicast users
Unlimited number of users via multicast
Logiciel d'administration fourni : Viewing and recording up to 16 cameras
Système réquis
CPU : Core Duo 2.8GHz (or equivalent AMD)
OS supportés : Windows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux
Carte graphique : 256 MB RAM graphic cards (or equivalent on-board graphic cards)
Navigateurs supportés : Internet Explorer; Firefox; Chrome; Safari
Mémoire : 1G RAM
Général
Alimentation externe : 12V DC, Max 12W
Certification : CE, FCC, RoHS
Contenu de l'emballage :

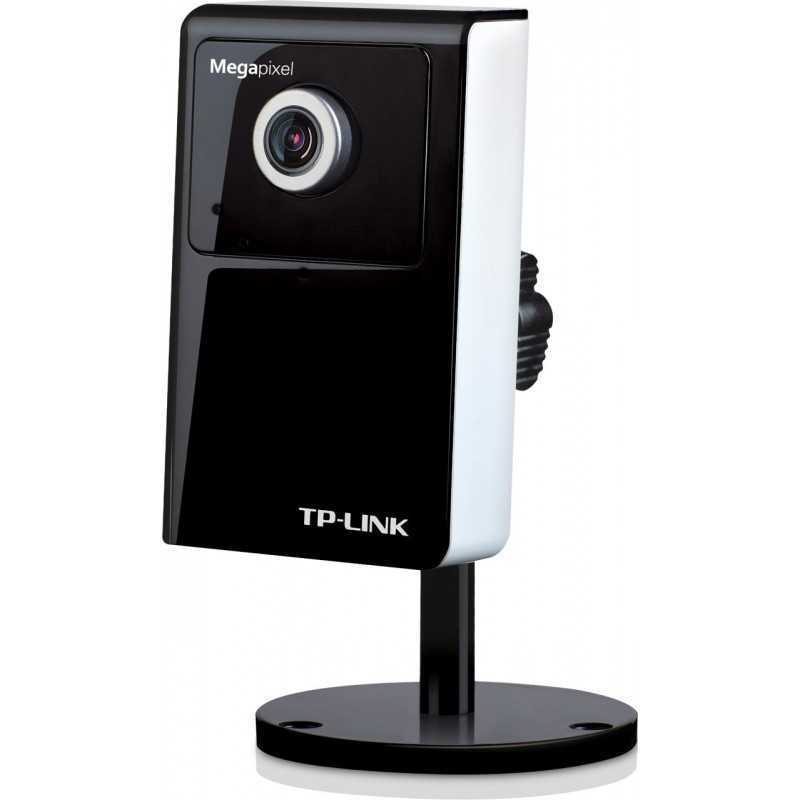

H.264 Megapixel Surveillance Camera TL-SC3430
Power Adaptor
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Camera Mount Kit
Environnement : Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C ~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions (LxPxH) : 3.7 x 2 .7 x 1.2 in. (96 x 58 x 31 mm)
